Name: PJL9804_R2_00001
Brand: Panjit International Inc.
SKU: PJL9804_R2_00001
Price: 0.44 USD
Availability: InStock

REF: PJL9804_R2_00001 Panjit International Inc.

PJL9804_R2_00001

Panjit International Inc.

30V DUAL N-CHANNEL ENHANCEMENT M

PJL9804_R2_00001 is a Transistors - FETs, MOSFETs - Arrays manufactured by Panjit International Inc.. 30V DUAL N-CHANNEL ENHANCEMENT M. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width), power - max 1.25W (Ta).

Request a Quote

In Stock: 1,125

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	6A (Ta)
Rds On (Max) @ Id, Vgs	28mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	2.1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	7.8nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	343pF @ 15V
Power - Max	1.25W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount

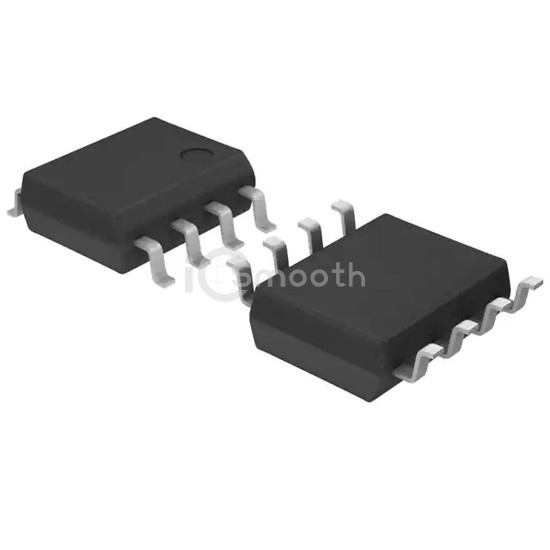

Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOP
