Name: MTM763200LBF
Brand: Panasonic Electronic Components
SKU: MTM763200LBF
Availability: InStock

REF: MTM763200LBF Panasonic Electronic Components

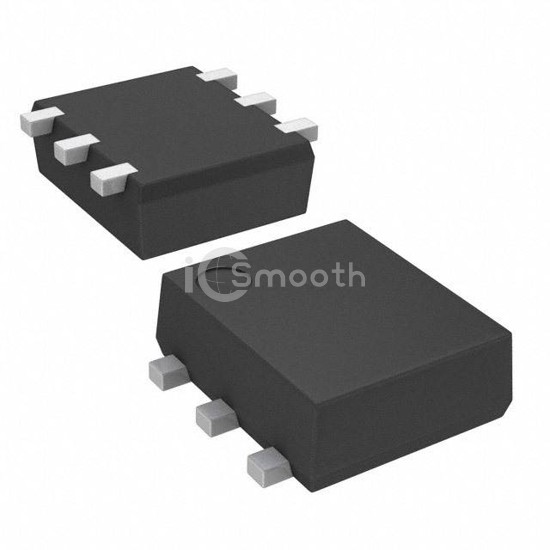

MTM763200LBF

MOSFET N/P-CH 20V WSMINI6-F1

MTM763200LBF is a Transistors - FETs, MOSFETs - Arrays manufactured by Panasonic Electronic Components. MOSFET N/P-CH 20V WSMINI6-F1. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-SMD, Flat Leads, power - max 700mW.

Datasheet Request a Quote

In Stock: 2,472

Specifications

14 parameters

Product Status	Obsolete
FET Type	N and P-Channel
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	1.9A, 1.2A
Rds On (Max) @ Id, Vgs	105mOhm @ 1A, 4V
Vgs(th) (Max) @ Id	1.3V @ 1mA

Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	280pF @ 10V
Power - Max	700mW
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-SMD, Flat Leads
Supplier Device Package	WSMini6-F1-B
