Name: FC8V33030L
Brand: Panasonic Electronic Components
SKU: FC8V33030L
Availability: InStock

REF: FC8V33030L Panasonic Electronic Components

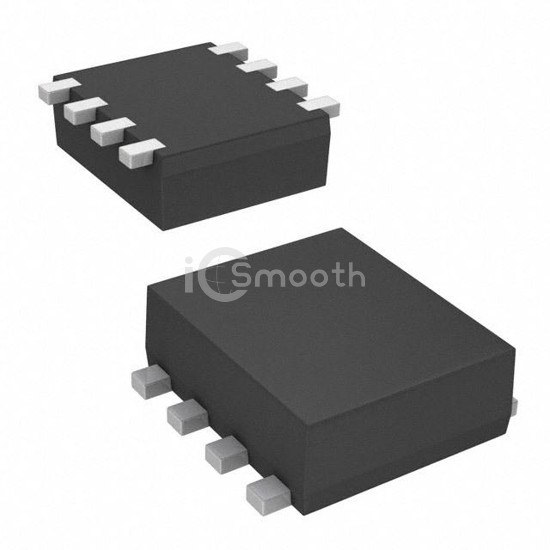

FC8V33030L

MOSFET 2N-CH 33V 6.5A WMINI8

FC8V33030L is a Transistors - FETs, MOSFETs - Arrays manufactured by Panasonic Electronic Components. MOSFET 2N-CH 33V 6.5A WMINI8. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-SMD, Flat Lead, power - max 1W.

Datasheet Request a Quote

In Stock: 2,033

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	33V
Current - Continuous Drain (Id) @ 25°C	6.5A
Rds On (Max) @ Id, Vgs	20mOhm @ 3.3A, 10V
Vgs(th) (Max) @ Id	2.5V @ 480µA

Gate Charge (Qg) (Max) @ Vgs	3.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	360pF @ 10V
Power - Max	1W
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SMD, Flat Lead
Supplier Device Package	WMini8-F1
