Name: FC8V22040L
Brand: Panasonic Electronic Components
SKU: FC8V22040L
Availability: InStock

REF: FC8V22040L Panasonic Electronic Components

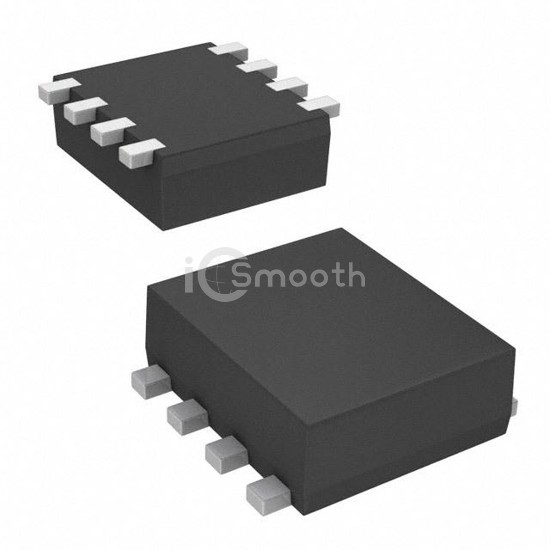

FC8V22040L

MOSFET 2N-CH 24V 8A WMINI8-F1

FC8V22040L is a Transistors - FETs, MOSFETs - Arrays manufactured by Panasonic Electronic Components. MOSFET 2N-CH 24V 8A WMINI8-F1. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TJ), package / case 8-SMD, Flat Lead, power - max 1W.

Datasheet Request a Quote

In Stock: 7,903

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	24V
Current - Continuous Drain (Id) @ 25°C	8A
Rds On (Max) @ Id, Vgs	15mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 1mA

Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	-
Power - Max	1W
Operating Temperature	-40°C ~ 85°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SMD, Flat Lead
Supplier Device Package	WMini8-F1
