FC8J33040L

In Stock: 1,736

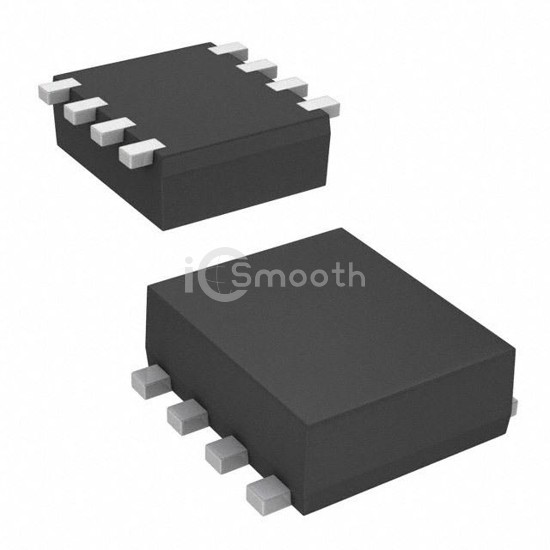

FC8J33040L - Panasonic Electronic Components - Transistors - FETs, MOSFETs - Arrays
REF: FC8J33040L Panasonic Electronic Components
FC8J33040L

Panasonic Electronic Components

MOSFET 2N-CH 33V 5A WMINI8-F1

FC8J33040L is a Transistors - FETs, MOSFETs - Arrays manufactured by Panasonic Electronic Components. MOSFET 2N-CH 33V 5A WMINI8-F1. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-SMD, Flat Lead, power - max 1W.

Datasheet Request a Quote

In Stock: 1,736

Specifications

14 parameters
Product StatusObsolete
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)33V
Current - Continuous Drain (Id) @ 25°C5A
Rds On (Max) @ Id, Vgs38mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id2.5V @ 260µA
Gate Charge (Qg) (Max) @ Vgs2.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds220pF @ 10V
Power - Max1W
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SMD, Flat Lead
Supplier Device PackageWMini8-F1
