Name: FC6546010R
Brand: Panasonic Electronic Components
SKU: FC6546010R
Availability: InStock

REF: FC6546010R Panasonic Electronic Components

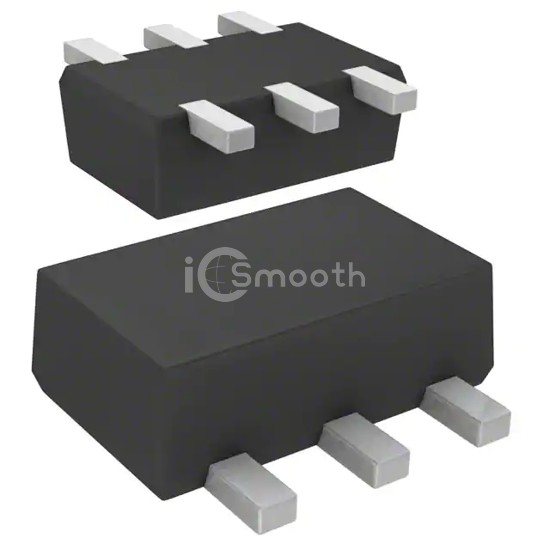

FC6546010R

MOSFET 2N-CH 60V 0.1A SMINI6-F3

FC6546010R is a Transistors - FETs, MOSFETs - Arrays manufactured by Panasonic Electronic Components. MOSFET 2N-CH 60V 0.1A SMINI6-F3. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-SMD, Flat Leads, power - max 150mW.

Datasheet Request a Quote

In Stock: 8,174

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	100mA
Rds On (Max) @ Id, Vgs	12Ohm @ 10mA, 4V
Vgs(th) (Max) @ Id	1.5V @ 1µA

Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	12pF @ 3V
Power - Max	150mW
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-SMD, Flat Leads
Supplier Device Package	SMini6-F3-B
