Name: NVLJD4007NZTBG
Brand: onsemi
SKU: NVLJD4007NZTBG
Availability: InStock

REF: NVLJD4007NZTBG onsemi

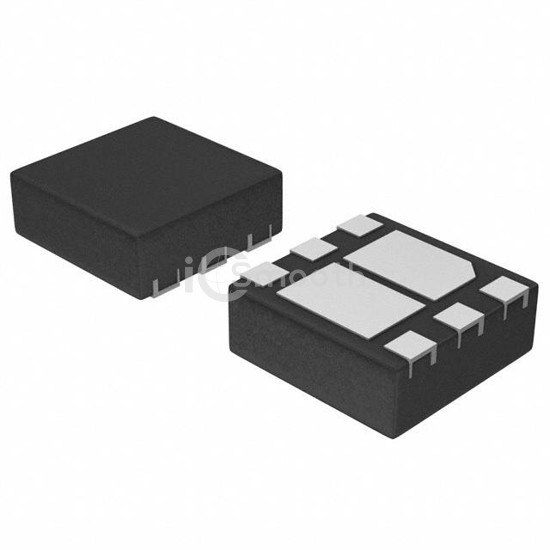

NVLJD4007NZTBG

MOSFET 2N-CH 30V 0.245A WDFN6

NVLJD4007NZTBG is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 30V 0.245A WDFN6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad, power - max 755mW.

Datasheet Request a Quote

In Stock: 6,038

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	245mA
Rds On (Max) @ Id, Vgs	7Ohm @ 125mA, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 100µA

Gate Charge (Qg) (Max) @ Vgs	0.75nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	20pF @ 5V
Power - Max	755mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-WDFN Exposed Pad
Supplier Device Package	6-WDFN (2x2)
