Name: NTLJD4116NT1G
Brand: onsemi
SKU: NTLJD4116NT1G
Price: 0.81 USD
Availability: InStock

REF: NTLJD4116NT1G onsemi

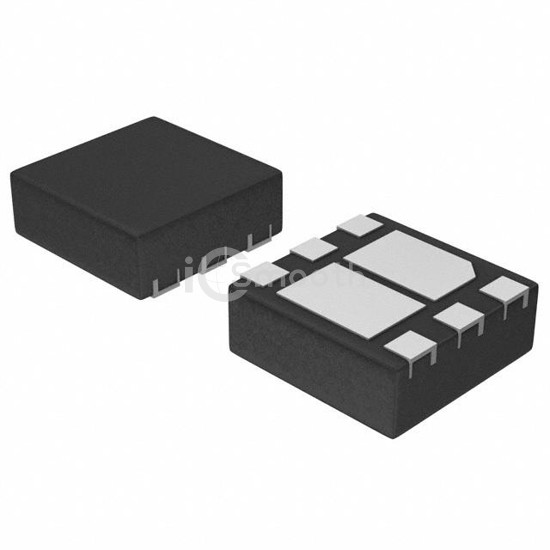

NTLJD4116NT1G

MOSFET 2N-CH 30V 2.5A 6WDFN

NTLJD4116NT1G is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 30V 2.5A 6WDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad, power - max 710mW.

Datasheet Request a Quote

In Stock: 8,543

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	2.5A
Rds On (Max) @ Id, Vgs	70mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	6.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	427pF @ 15V
Power - Max	710mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-WDFN Exposed Pad
Supplier Device Package	6-WDFN (2x2)
