Name: NTTFD9D0N06HLTWG
Brand: onsemi
SKU: NTTFD9D0N06HLTWG
Price: 0.96 USD
Availability: InStock

REF: NTTFD9D0N06HLTWG onsemi

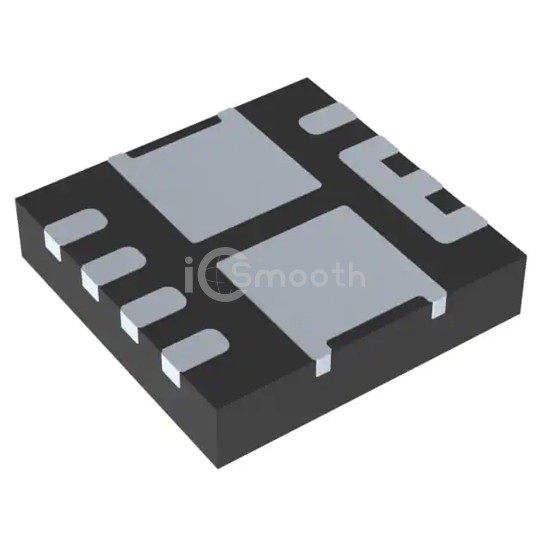

NTTFD9D0N06HLTWG

MOSFET, POWER, 60V POWERTRENCH P

NTTFD9D0N06HLTWG is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET, POWER, 60V POWERTRENCH P. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 12-PowerWQFN, power - max 1.7W (Ta), 26W (Tc).

Datasheet Request a Quote

In Stock: 7,190

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	9A (Ta), 38A (Tc)
Rds On (Max) @ Id, Vgs	9mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2V @ 50µA

Gate Charge (Qg) (Max) @ Vgs	13.5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	948pF @ 30V
Power - Max	1.7W (Ta), 26W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	12-PowerWQFN
Supplier Device Package	12-WQFN (3.3x3.3)
