Name: NTMFD5C680NLT1G
Brand: onsemi
SKU: NTMFD5C680NLT1G
Price: 1.50 USD
Availability: InStock

REF: NTMFD5C680NLT1G onsemi

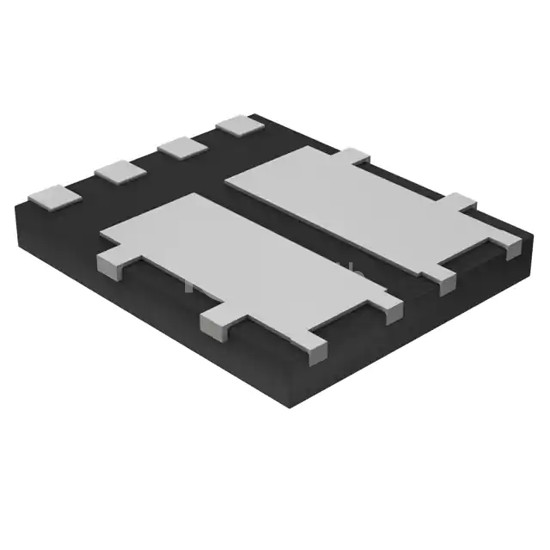

NTMFD5C680NLT1G

T6 60V LL SO8FL DUAL

NTMFD5C680NLT1G is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. T6 60V LL SO8FL DUAL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN, power - max 3W (Ta), 19W (Tc).

Datasheet Request a Quote

In Stock: 4,616

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	7.5A (Ta), 26A (Tc)
Rds On (Max) @ Id, Vgs	28mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	2.2V @ 13µA

Gate Charge (Qg) (Max) @ Vgs	5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	350pF @ 25V
Power - Max	3W (Ta), 19W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerTDFN
Supplier Device Package	8-DFN (5x6) Dual Flag (SO8FL-Dual)
