Name: NTMFD4C20NT1G
Brand: onsemi
SKU: NTMFD4C20NT1G
Price: 2.27 USD
Availability: InStock

REF: NTMFD4C20NT1G onsemi

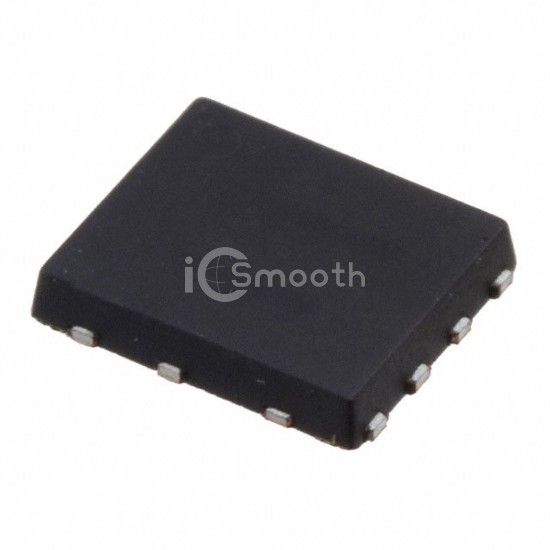

NTMFD4C20NT1G

MOSFET 2N-CH 30V SO8FL

NTMFD4C20NT1G is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 30V SO8FL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN, power - max 1.09W, 1.15W.

Datasheet Request a Quote

In Stock: 1,480

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	9.1A, 13.7A
Rds On (Max) @ Id, Vgs	7.3mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	9.3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	970pF @ 15V
Power - Max	1.09W, 1.15W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerTDFN
Supplier Device Package	8-DFN (5x6) Dual Flag (SO8FL-Dual-Asymmetrical)
