Name: NTMFD4901NFT1G
Brand: onsemi
SKU: NTMFD4901NFT1G
Price: 1.33 USD
Availability: InStock

REF: NTMFD4901NFT1G onsemi

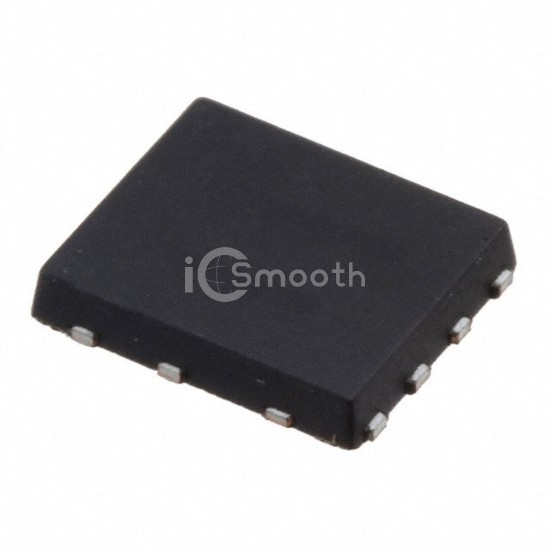

NTMFD4901NFT1G

MOSFET 2N-CH 30V 8DFN

NTMFD4901NFT1G is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 30V 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN, power - max 1.1W, 1.2W.

Datasheet Request a Quote

In Stock: 4

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual), Schottky
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	10.3A, 17.9A
Rds On (Max) @ Id, Vgs	6.5mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	9.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1150pF @ 15V
Power - Max	1.1W, 1.2W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerTDFN
Supplier Device Package	8-DFN (5x6) Dual Flag (SO8FL-Dual-Asymmetrical)
