Name: NTLUD4C26NTBG
Brand: onsemi
SKU: NTLUD4C26NTBG
Availability: InStock

REF: NTLUD4C26NTBG onsemi

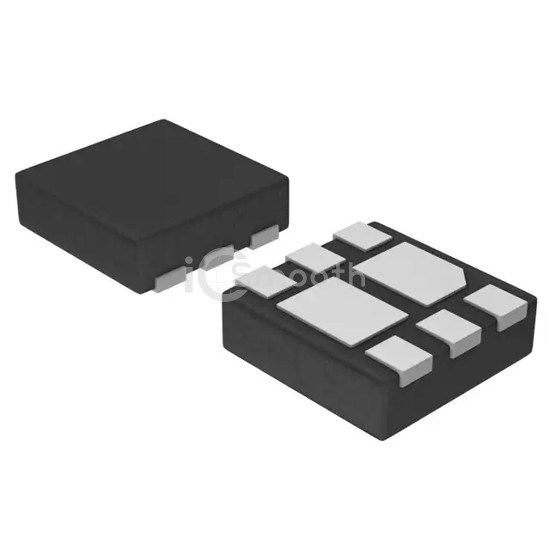

NTLUD4C26NTBG

MOSFET 2 N-CH 30V 9.1A 6UDFN

NTLUD4C26NTBG is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2 N-CH 30V 9.1A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad, power - max 2.63W.

Datasheet Request a Quote

In Stock: 5,445

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	9.1A (Ta)
Rds On (Max) @ Id, Vgs	21mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	1.1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	9nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	460pF @ 15V
Power - Max	2.63W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-UDFN Exposed Pad
Supplier Device Package	6-UDFN (2x2)
