Name: NTLUD3A260PZTBG
Brand: onsemi
SKU: NTLUD3A260PZTBG
Availability: InStock

REF: NTLUD3A260PZTBG onsemi

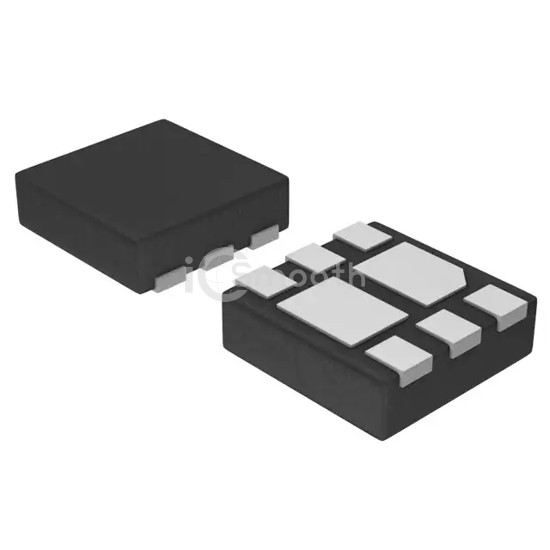

NTLUD3A260PZTBG

MOSFET 2P-CH 20V 1.3A 6UDFN

NTLUD3A260PZTBG is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2P-CH 20V 1.3A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UFDFN Exposed Pad, power - max 500mW.

Datasheet Request a Quote

In Stock: 5,595

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 P-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	1.3A
Rds On (Max) @ Id, Vgs	200mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	4.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	300pF @ 10V
Power - Max	500mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-UFDFN Exposed Pad
Supplier Device Package	6-UDFN (1.6x1.6)
