NTLUD3A260PZTAG

In Stock: 8,043

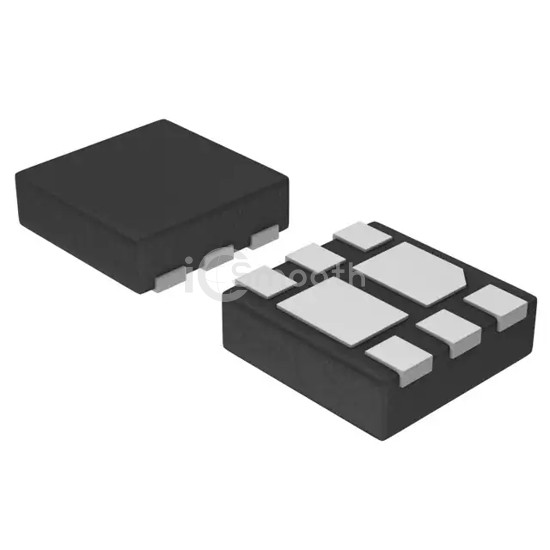

NTLUD3A260PZTAG - onsemi - Transistors - FETs, MOSFETs - Arrays
REF: NTLUD3A260PZTAG onsemi
NTLUD3A260PZTAG

onsemi

MOSFET 2P-CH 20V 1.3A 6UDFN

NTLUD3A260PZTAG is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2P-CH 20V 1.3A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UFDFN Exposed Pad, power - max 500mW.

Datasheet Request a Quote

In Stock: 8,043

Specifications

14 parameters
Product StatusActive
FET Type2 P-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C1.3A
Rds On (Max) @ Id, Vgs200mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs4.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds300pF @ 10V
Power - Max500mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-UFDFN Exposed Pad
Supplier Device Package6-UDFN (1.6x1.6)
