Name: NTLUD3191PZTAG
Brand: onsemi
SKU: NTLUD3191PZTAG
Price: 0.17 USD
Availability: InStock

REF: NTLUD3191PZTAG onsemi

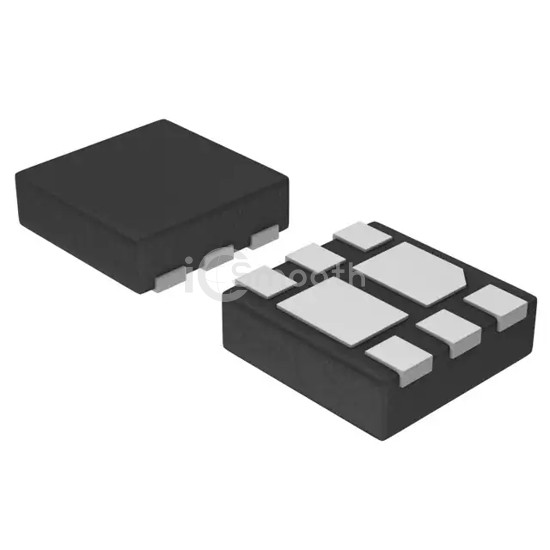

NTLUD3191PZTAG

MOSFET 2P-CH 20V 1.1A 6UDFN

NTLUD3191PZTAG is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2P-CH 20V 1.1A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UFDFN Exposed Pad, power - max 500mW.

Datasheet Request a Quote

In Stock: 99,480

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 P-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	1.1A
Rds On (Max) @ Id, Vgs	250mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	3.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	160pF @ 10V
Power - Max	500mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-UFDFN Exposed Pad
Supplier Device Package	6-UDFN (1.6x1.6)
