Name: NTLLD4901NFTWG
Brand: onsemi
SKU: NTLLD4901NFTWG
Availability: InStock

REF: NTLLD4901NFTWG onsemi

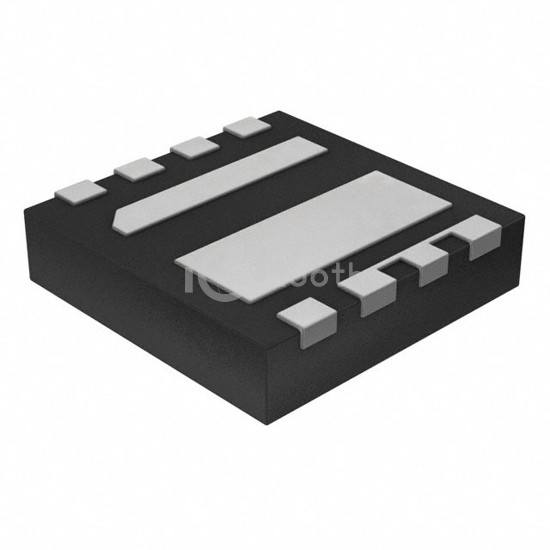

NTLLD4901NFTWG

MOSFET 2N-CH 30V 5.5A/6.3A 8WDFN

NTLLD4901NFTWG is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 30V 5.5A/6.3A 8WDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-WDFN Exposed Pad, power - max 800mW, 810mW.

Datasheet Request a Quote

In Stock: 2,724

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	5.5A, 6.3A
Rds On (Max) @ Id, Vgs	17.4mOhm @ 9A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	12nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	605pF @ 15V
Power - Max	800mW, 810mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-WDFN Exposed Pad
Supplier Device Package	8-WDFN (3x3)
