Name: NTLJD4150PTBG
Brand: onsemi
SKU: NTLJD4150PTBG
Availability: InStock

REF: NTLJD4150PTBG onsemi

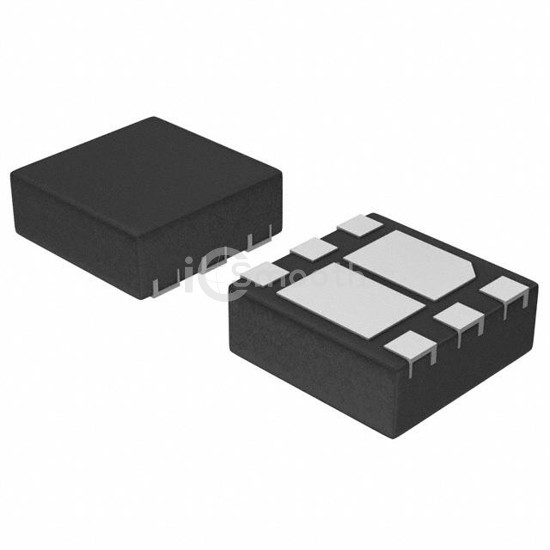

NTLJD4150PTBG

MOSFET 2P-CH 30V 1.8A 6WDFN

NTLJD4150PTBG is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2P-CH 30V 1.8A 6WDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad, power - max 700mW.

Datasheet Request a Quote

In Stock: 2,782

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 P-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	1.8A
Rds On (Max) @ Id, Vgs	135mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	4.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	300pF @ 15V
Power - Max	700mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-WDFN Exposed Pad
Supplier Device Package	6-WDFN (2x2)
