NTLJD2105LTBG

In Stock: 44,912

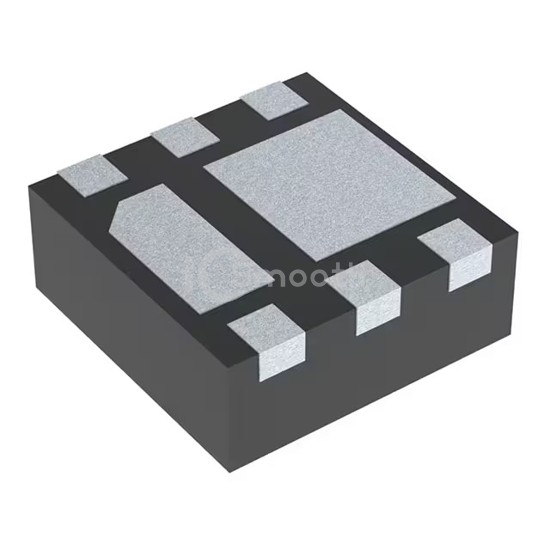

NTLJD2105LTBG - onsemi - Transistors - FETs, MOSFETs - Arrays
REF: NTLJD2105LTBG onsemi
NTLJD2105LTBG

onsemi

MOSFET N/P-CH 8V 2.5A 6-WDFN

NTLJD2105LTBG is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET N/P-CH 8V 2.5A 6-WDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad, power - max 520mW.

Datasheet Request a Quote

In Stock: 44,912

Specifications

14 parameters
Product StatusObsolete
FET TypeN and P-Channel
FET FeatureStandard
Drain to Source Voltage (Vdss)8V
Current - Continuous Drain (Id) @ 25°C2.5A
Rds On (Max) @ Id, Vgs50mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Input Capacitance (Ciss) (Max) @ Vds-
Power - Max520mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-WDFN Exposed Pad
Supplier Device Package6-WDFN (2x2)
