Name: NTHD4401PT3
Brand: onsemi
SKU: NTHD4401PT3
Availability: InStock

REF: NTHD4401PT3 onsemi

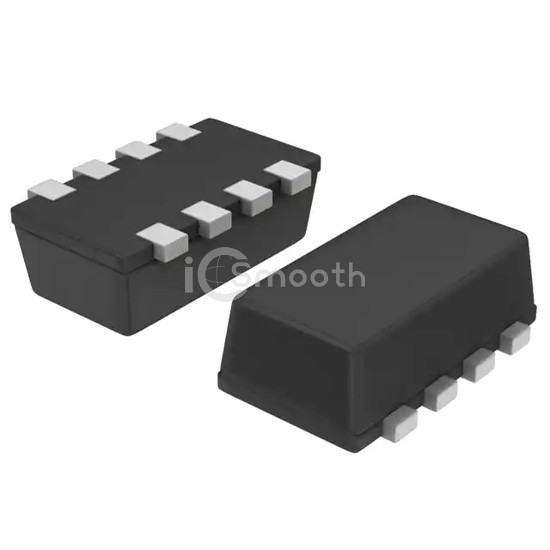

NTHD4401PT3

MOSFET 2P-CH 20V 2.1A CHIPFET

NTHD4401PT3 is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2P-CH 20V 2.1A CHIPFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SMD, Flat Lead, power - max 1.1W.

Datasheet Request a Quote

In Stock: 1,341

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 P-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	2.1A
Rds On (Max) @ Id, Vgs	155mOhm @ 2.1A, 4.5V
Vgs(th) (Max) @ Id	1.2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	300pF @ 10V
Power - Max	1.1W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SMD, Flat Lead
Supplier Device Package	ChipFET™
