Name: MCH6663-TL-H
Brand: onsemi
SKU: MCH6663-TL-H
Availability: InStock

REF: MCH6663-TL-H onsemi

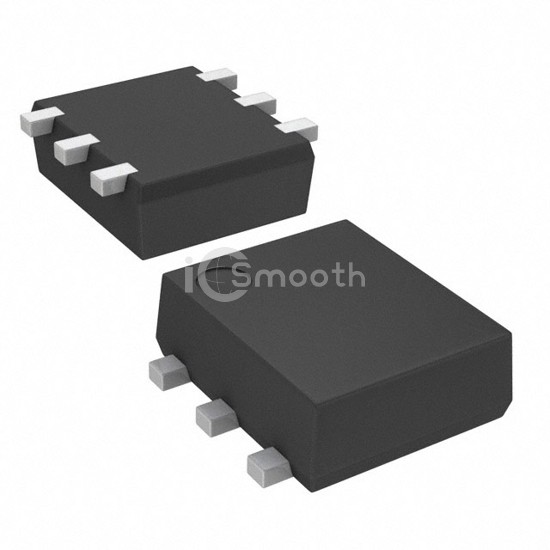

MCH6663-TL-H

MOSFET N/P-CH 30V 1.8/1.5A MCPH6

MCH6663-TL-H is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET N/P-CH 30V 1.8/1.5A MCPH6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-SMD, Flat Leads, power - max 800mW.

Datasheet Request a Quote

In Stock: 7,536

Specifications

14 parameters

Product Status	Obsolete
FET Type	N and P-Channel
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	1.8A, 1.5A
Rds On (Max) @ Id, Vgs	188mOhm @ 900mA, 10V
Vgs(th) (Max) @ Id	-

Gate Charge (Qg) (Max) @ Vgs	2nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	88pF @ 10V
Power - Max	800mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-SMD, Flat Leads
Supplier Device Package	6-MCPH
