Name: MCH6660-TL-W
Brand: onsemi
SKU: MCH6660-TL-W
Availability: InStock

REF: MCH6660-TL-W onsemi

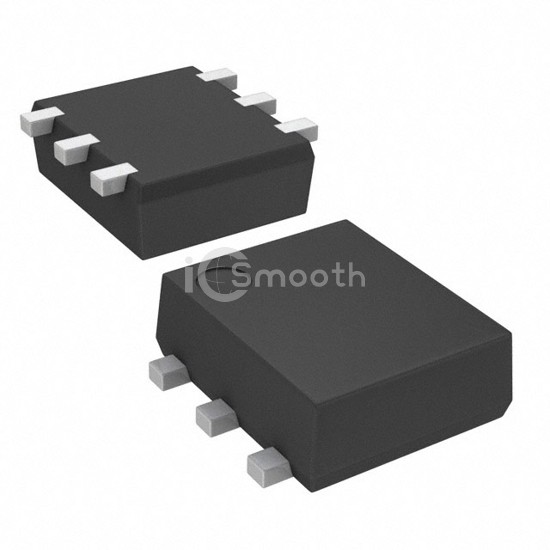

MCH6660-TL-W

MOSFET N/P-CH 20V 2A/1.5A 6MCPH

MCH6660-TL-W is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET N/P-CH 20V 2A/1.5A 6MCPH. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-SMD, Flat Leads, power - max 800mW.

Datasheet Request a Quote

In Stock: 2,997

Specifications

14 parameters

Product Status	Obsolete
FET Type	N and P-Channel
FET Feature	Logic Level Gate, 1.8V Drive
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	2A, 1.5A
Rds On (Max) @ Id, Vgs	136mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id	1.3V @ 1mA

Gate Charge (Qg) (Max) @ Vgs	1.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	128pF @ 10V
Power - Max	800mW
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-SMD, Flat Leads
Supplier Device Package	6-MCPH
