Name: FDZ1416NZ
Brand: onsemi
SKU: FDZ1416NZ
Availability: InStock

REF: FDZ1416NZ onsemi

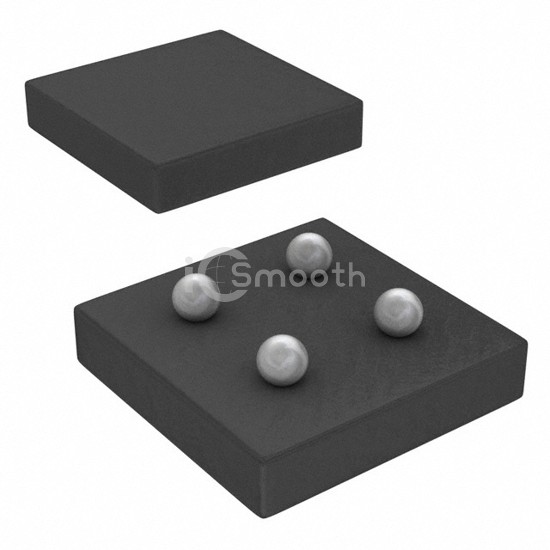

FDZ1416NZ

MOSFET 2N-CH 4WLCSP

FDZ1416NZ is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 4WLCSP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-XFBGA, WLCSP, power - max 500mW.

Datasheet Request a Quote

In Stock: 7,648

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Standard
Drain to Source Voltage (Vdss)	-
Current - Continuous Drain (Id) @ 25°C	-
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	1.3V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	17nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	-
Power - Max	500mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-XFBGA, WLCSP
Supplier Device Package	4-WLCSP (1.6x1.4)
