Name: FDR8305N
Brand: onsemi
SKU: FDR8305N
Availability: InStock

REF: FDR8305N onsemi

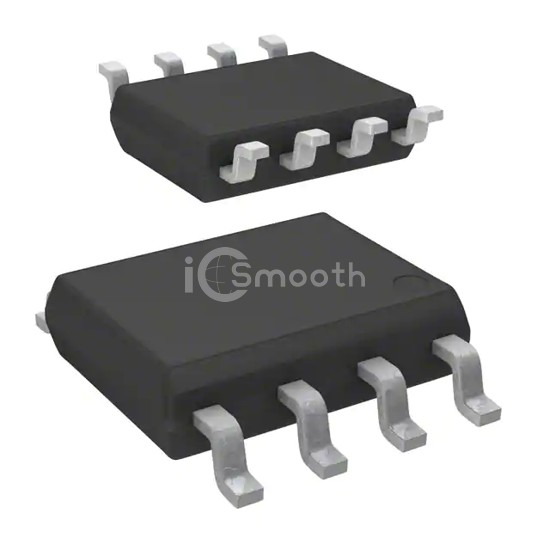

FDR8305N

MOSFET 2N-CH 20V 4.5A SSOT-8

FDR8305N is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 20V 4.5A SSOT-8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-LSOP (0.130", 3.30mm Width), power - max 800mW.

Datasheet Request a Quote

In Stock: 7,963

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	4.5A
Rds On (Max) @ Id, Vgs	22mOhm @ 4.5A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	23nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1600pF @ 10V
Power - Max	800mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-LSOP (0.130", 3.30mm Width)
Supplier Device Package	SuperSOT™-8
