Name: FDQ7698S
Brand: onsemi
SKU: FDQ7698S
Availability: InStock

REF: FDQ7698S onsemi

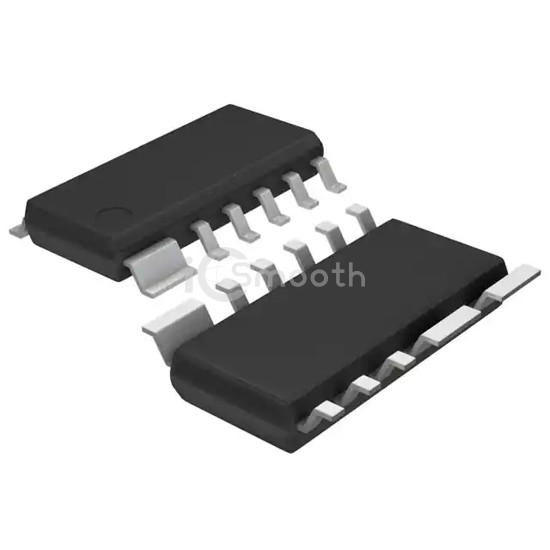

FDQ7698S

MOSFET 2N-CH 30V 12A/15A 14SOIC

FDQ7698S is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 30V 12A/15A 14SOIC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 14-SOIC (0.154", 3.90mm Width), 11 Leads, Fused Leads, power - max 1.1W, 1.3W.

Datasheet Request a Quote

In Stock: 5,932

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	12A, 15A
Rds On (Max) @ Id, Vgs	7.5mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	17nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds	1324pF @ 15V
Power - Max	1.1W, 1.3W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	14-SOIC (0.154", 3.90mm Width), 11 Leads, Fused Leads
Supplier Device Package	14-SO
