FDPC8016S

In Stock: 6,299

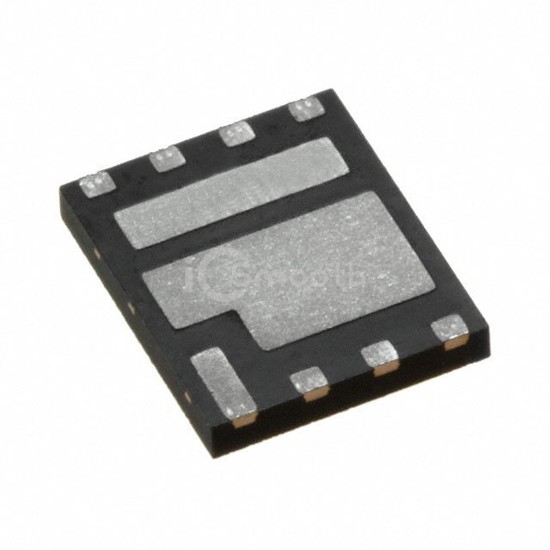

FDPC8016S - onsemi - Transistors - FETs, MOSFETs - Arrays
REF: FDPC8016S onsemi
FDPC8016S

onsemi

MOSFET 2N-CH 25V 8PWRCLIP

FDPC8016S is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 25V 8PWRCLIP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 2.1W, 2.3W.

Datasheet Request a Quote

In Stock: 6,299

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual) Asymmetrical
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25°C20A, 35A
Rds On (Max) @ Id, Vgs3.8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs35nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds2375pF @ 13V
Power - Max2.1W, 2.3W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerWDFN
Supplier Device PackagePower Clip 56
