FDPC8012S

In Stock: 12,442

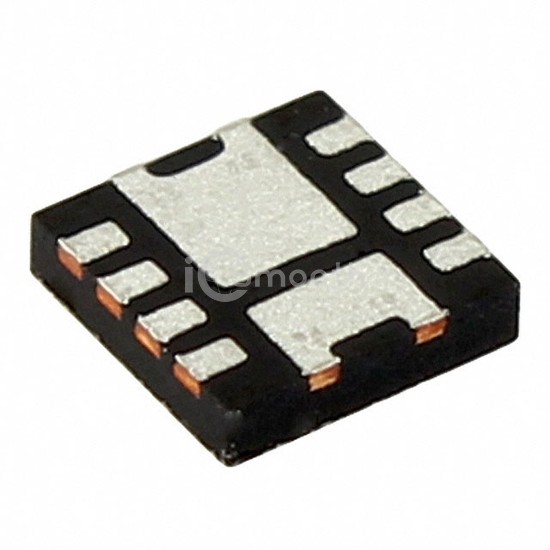

FDPC8012S - onsemi - Transistors - FETs, MOSFETs - Arrays
REF: FDPC8012S onsemi
FDPC8012S

onsemi

MOSFET 2N-CH 25V 13A/26A PWR CLP

FDPC8012S is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 25V 13A/26A PWR CLP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 800mW, 900mW.

Datasheet Request a Quote

In Stock: 12,442

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual) Asymmetrical
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25°C13A, 26A
Rds On (Max) @ Id, Vgs7mOhm @ 12A, 4.5V
Vgs(th) (Max) @ Id2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1075pF @ 13V
Power - Max800mW, 900mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerWDFN
Supplier Device PackagePowerclip-33
