FDPC5018SG

In Stock: 8,970

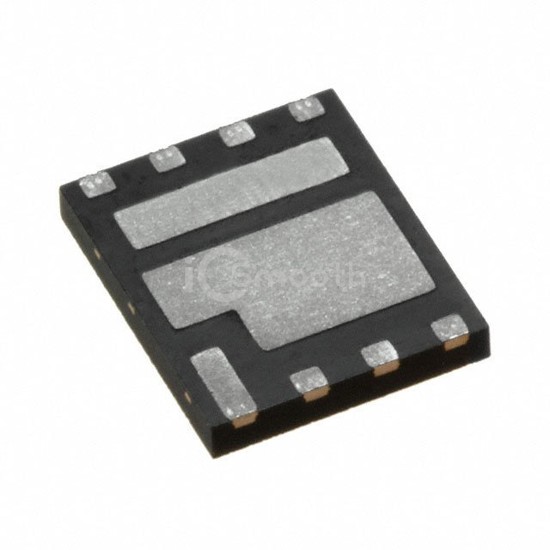

FDPC5018SG - onsemi - Transistors - FETs, MOSFETs - Arrays
REF: FDPC5018SG onsemi
FDPC5018SG

onsemi

MOSFET 2N-CH 30V PWRCLIP56

FDPC5018SG is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 30V PWRCLIP56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 1W, 1.1W.

Datasheet Request a Quote

In Stock: 8,970

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual) Asymmetrical
FET FeatureStandard
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C17A, 32A
Rds On (Max) @ Id, Vgs5mOhm @ 17A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs24nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds1715pF @ 15V
Power - Max1W, 1.1W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerWDFN
Supplier Device PackagePower Clip 56
