FDMS9600S

In Stock: 9,418

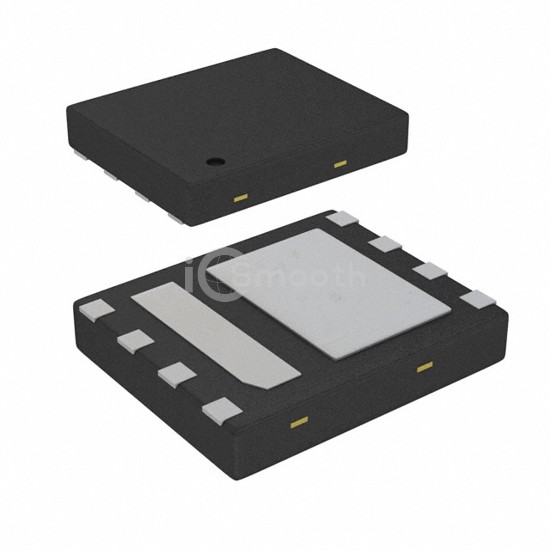

FDMS9600S - onsemi - Transistors - FETs, MOSFETs - Arrays
REF: FDMS9600S onsemi
FDMS9600S

onsemi

MOSFET 2N-CH 30V 12A/16A POWER56

FDMS9600S is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 30V 12A/16A POWER56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 1W.

Datasheet Request a Quote

In Stock: 9,418

Specifications

14 parameters
Product StatusObsolete
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C12A, 16A
Rds On (Max) @ Id, Vgs8.5mOhm @ 12A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs13nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1705pF @ 15V
Power - Max1W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerWDFN
Supplier Device Package8-MLP (5x6), Power56
