FDMS7700S

In Stock: 3,195

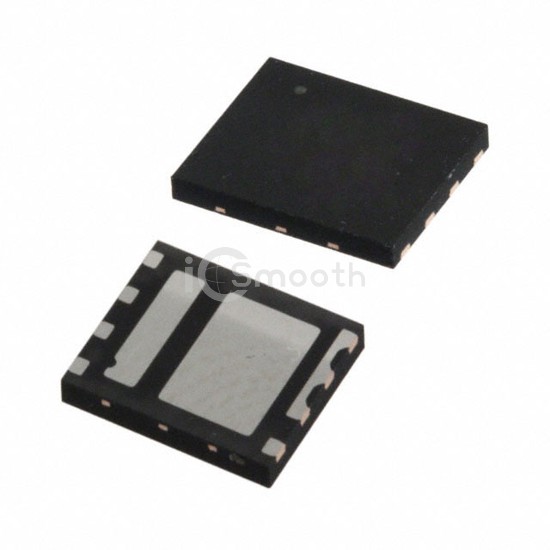

FDMS7700S - onsemi - Transistors - FETs, MOSFETs - Arrays
REF: FDMS7700S onsemi
FDMS7700S

onsemi

MOSFET 2N-CH 30V 12A/22A POWER56

FDMS7700S is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 30V 12A/22A POWER56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 1W.

Datasheet Request a Quote

In Stock: 3,195

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C12A, 22A
Rds On (Max) @ Id, Vgs7.5mOhm @ 12A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs28nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds1750pF @ 15V
Power - Max1W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerWDFN
Supplier Device PackagePower56
