FDMS7620S-F106

In Stock: 3,158

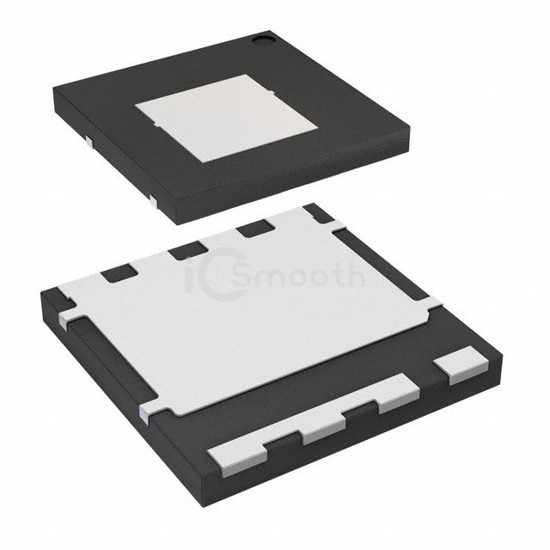

FDMS7620S-F106 - onsemi - Transistors - FETs, MOSFETs - Arrays
REF: FDMS7620S-F106 onsemi
FDMS7620S-F106

onsemi

MOSFET 2N-CH 30V POWER56

FDMS7620S-F106 is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 30V POWER56. Key specifications: mounting type Surface Mount, package / case 8-PowerWDFN, power - max 1W.

Datasheet Request a Quote

In Stock: 3,158

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Half Bridge)
FET FeatureStandard
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C10.1A, 12.4A
Rds On (Max) @ Id, Vgs20mOhm @ 10.1A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs11nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds608pF @ 15V
Power - Max1W
Operating Temperature-
Mounting TypeSurface Mount
Package / Case8-PowerWDFN
Supplier Device PackagePower56
