FDMS3626S

In Stock: 558

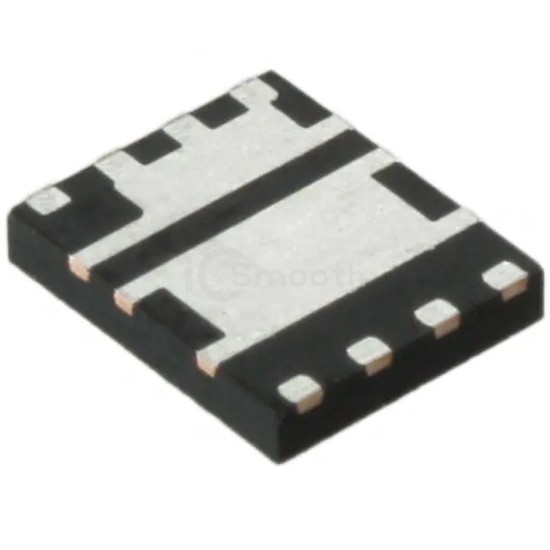

FDMS3626S - onsemi - Transistors - FETs, MOSFETs - Arrays
REF: FDMS3626S onsemi
FDMS3626S

onsemi

MOSFET 2N-CH 25V 17.5/25A PWR56

FDMS3626S is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 25V 17.5/25A PWR56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN, power - max 1W.

Datasheet Request a Quote

In Stock: 558

Specifications

14 parameters
Product StatusObsolete
FET Type2 N-Channel (Dual) Asymmetrical
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25°C17.5A, 25A
Rds On (Max) @ Id, Vgs5mOhm @ 17.5A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs26nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds1570pF @ 13V
Power - Max1W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerTDFN
Supplier Device PackagePower56
