FDMS3620S

In Stock: 2,684

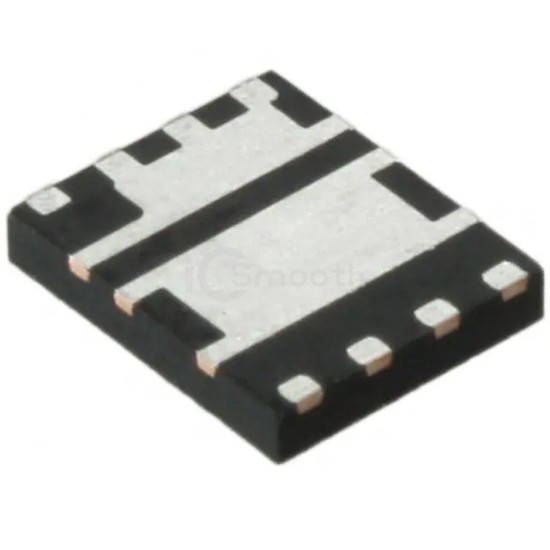

FDMS3620S - onsemi - Transistors - FETs, MOSFETs - Arrays
REF: FDMS3620S onsemi
FDMS3620S

onsemi

MOSFET 2N-CH 25V 17.5A/38A 8PQFN

FDMS3620S is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 25V 17.5A/38A 8PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN, power - max 1W.

Datasheet Request a Quote

In Stock: 2,684

Specifications

14 parameters
Product StatusObsolete
FET Type2 N-Channel (Dual) Asymmetrical
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25°C17.5A, 38A
Rds On (Max) @ Id, Vgs4.7mOhm @ 17.5A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs26nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds1570pF @ 13V
Power - Max1W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerTDFN
Supplier Device PackagePower56
