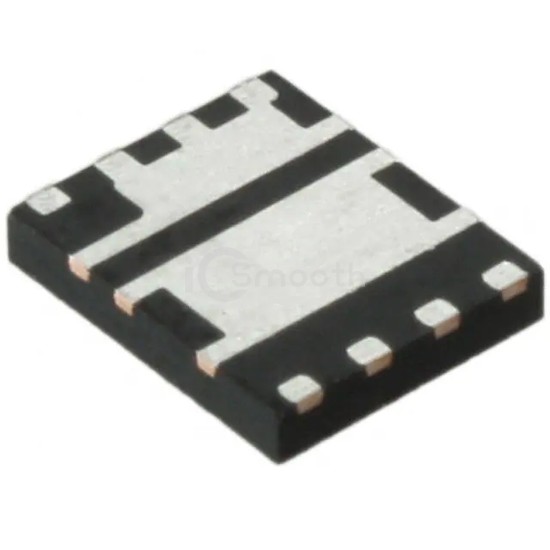

FDMS3606S

In Stock: 5,063
FDMS3606S - onsemi - Transistors - FETs, MOSFETs - Arrays
REF: FDMS3606S onsemi
FDMS3606S

onsemi

MOSFET 2N-CH 30V 13A/27A POWER56

FDMS3606S is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 30V 13A/27A POWER56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN, power - max 1W.

Datasheet Request a Quote

In Stock: 5,063

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual) Asymmetrical
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C13A, 27A
Rds On (Max) @ Id, Vgs8mOhm @ 13A, 10V
Vgs(th) (Max) @ Id2.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs29nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds1785pF @ 15V
Power - Max1W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerTDFN
Supplier Device PackagePower56
