FDMQ86530L

In Stock: 8,906

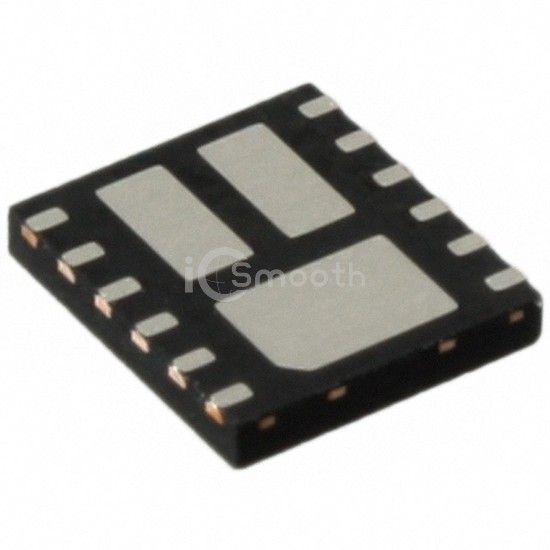

FDMQ86530L - onsemi - Transistors - FETs, MOSFETs - Arrays
REF: FDMQ86530L onsemi
FDMQ86530L

onsemi

MOSFET 4N-CH 60V 8A 12MLP

FDMQ86530L is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 4N-CH 60V 8A 12MLP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 12-WDFN Exposed Pad, power - max 1.9W.

Datasheet Request a Quote

In Stock: 8,906

Specifications

14 parameters
Product StatusActive
FET Type4 N-Channel (Half Bridge)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25°C8A
Rds On (Max) @ Id, Vgs17.5mOhm @ 8A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs33nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds2295pF @ 30V
Power - Max1.9W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case12-WDFN Exposed Pad
Supplier Device Package12-MLP (5x4.5)
