FDMQ8203

In Stock: 8,619

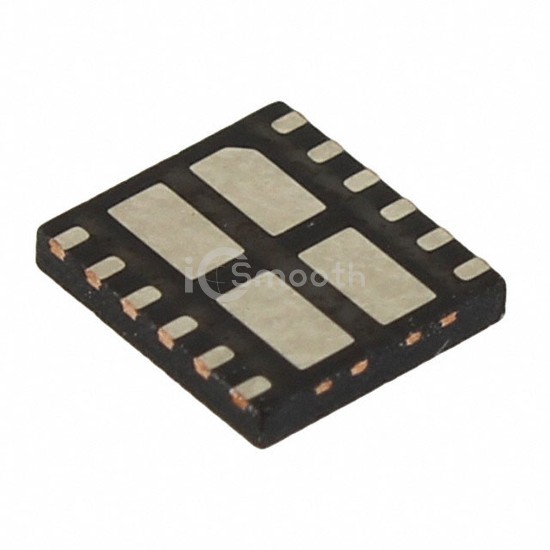

FDMQ8203 - onsemi - Transistors - FETs, MOSFETs - Arrays
REF: FDMQ8203 onsemi
FDMQ8203

onsemi

MOSFET 2N/2P-CH 100V/80V 12-MLP

FDMQ8203 is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N/2P-CH 100V/80V 12-MLP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 12-WDFN Exposed Pad, power - max 2.5W.

Datasheet Request a Quote

In Stock: 8,619

Specifications

14 parameters
Product StatusActive
FET Type2 N and 2 P-Channel (Half Bridge)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)100V, 80V
Current - Continuous Drain (Id) @ 25°C3.4A, 2.6A
Rds On (Max) @ Id, Vgs110mOhm @ 3A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds210pF @ 50V
Power - Max2.5W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case12-WDFN Exposed Pad
Supplier Device Package12-MLP (5x4.5)
