Name: FDMJ1032C
Brand: onsemi
SKU: FDMJ1032C
Availability: InStock

REF: FDMJ1032C onsemi

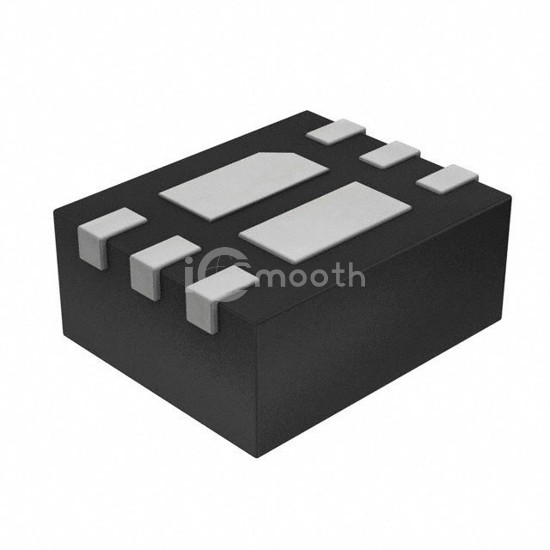

FDMJ1032C

MOSFET N/P-CH 20V 3.2A/2.5A SC75

FDMJ1032C is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET N/P-CH 20V 3.2A/2.5A SC75. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WFDFN Exposed Pad, power - max 800mW.

Datasheet Request a Quote

In Stock: 9,455

Specifications

14 parameters

Product Status	Obsolete
FET Type	N and P-Channel
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	3.2A, 2.5A
Rds On (Max) @ Id, Vgs	90mOhm @ 3.2A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	270pF @ 10V
Power - Max	800mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-WFDFN Exposed Pad
Supplier Device Package	SC-75, MicroFET
