FDMD8680

In Stock: 1,512

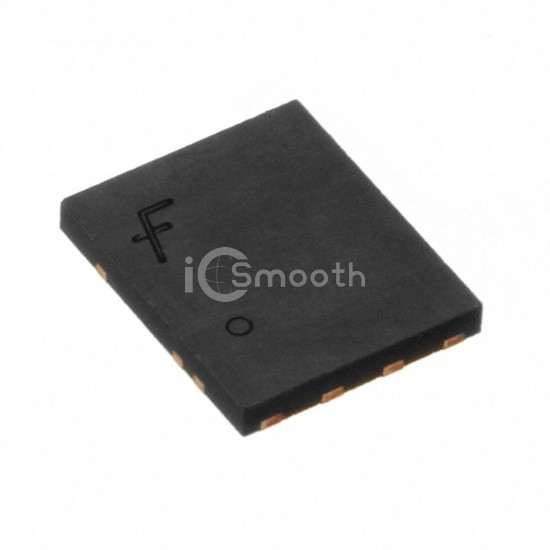

FDMD8680 - onsemi - Transistors - FETs, MOSFETs - Arrays
REF: FDMD8680 onsemi
FDMD8680

onsemi

MOSFET 2 N-CH 80V 66A 8-PQFN

FDMD8680 is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2 N-CH 80V 66A 8-PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 39W.

Datasheet Request a Quote

In Stock: 1,512

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)80V
Current - Continuous Drain (Id) @ 25°C66A (Tc)
Rds On (Max) @ Id, Vgs4.7mOhm @ 16A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs73nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds5330pF @ 40V
Power - Max39W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerWDFN
Supplier Device Package8-Power 5x6
