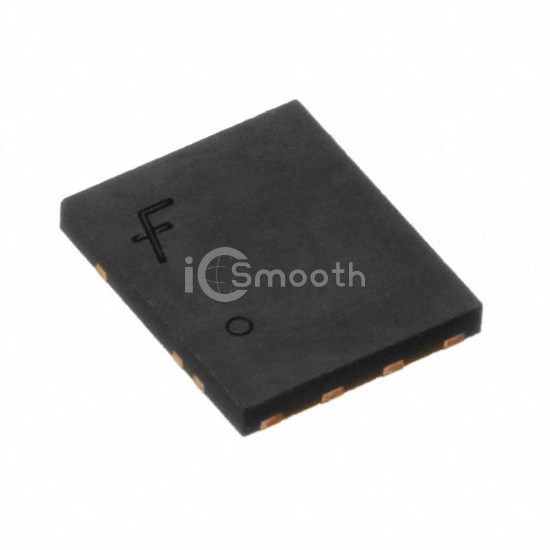

FDMD86100

In Stock: 2,889
FDMD86100 - onsemi - Transistors - FETs, MOSFETs - Arrays
REF: FDMD86100 onsemi
FDMD86100

onsemi

MOSFET 2N-CH 100V 10A 8POWER 5X6

FDMD86100 is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 100V 10A 8POWER 5X6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 2.2W.

Datasheet Request a Quote

In Stock: 2,889

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual) Common Source
FET FeatureStandard
Drain to Source Voltage (Vdss)100V
Current - Continuous Drain (Id) @ 25°C10A
Rds On (Max) @ Id, Vgs10.5mOhm @ 10A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs30nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds2060pF @ 50V
Power - Max2.2W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerWDFN
Supplier Device Package8-Power 5x6
