FDMD8580

In Stock: 5,684

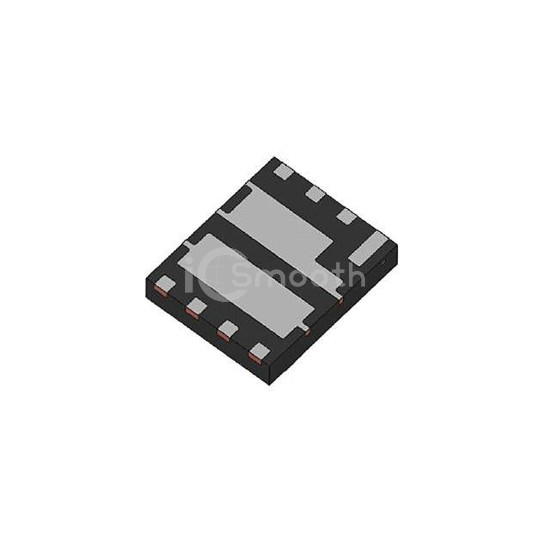

FDMD8580 - onsemi - Transistors - FETs, MOSFETs - Arrays
REF: FDMD8580 onsemi
FDMD8580

onsemi

MOSFET 80V 16A POWER 5X6

FDMD8580 is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 80V 16A POWER 5X6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 2.3W.

Datasheet Request a Quote

In Stock: 5,684

Specifications

14 parameters
Product StatusObsolete
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)80V
Current - Continuous Drain (Id) @ 25°C16A (Ta), 82A (Tc)
Rds On (Max) @ Id, Vgs4.6mOhm @ 16A, 10V
Vgs(th) (Max) @ Id4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs80nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds5875pF @ 40V
Power - Max2.3W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerWDFN
Supplier Device PackagePower56
