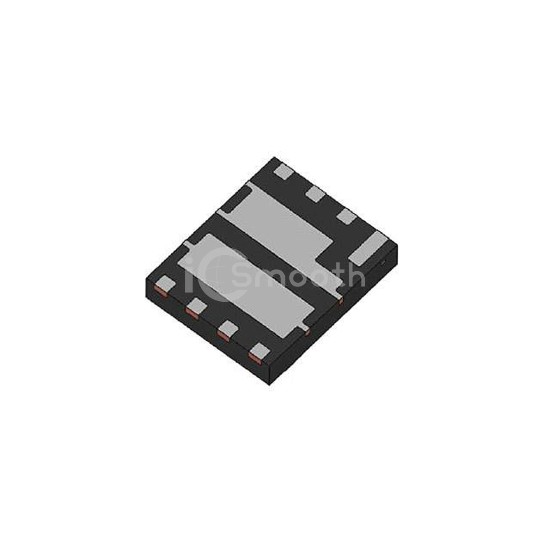

FDMD8560L

In Stock: 3,000
FDMD8560L - onsemi - Transistors - FETs, MOSFETs - Arrays
REF: FDMD8560L onsemi
FDMD8560L

onsemi

MOSFET 2N-CH 46V 22A POWER

FDMD8560L is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 46V 22A POWER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 2.2W.

Datasheet Request a Quote

In Stock: 3,000

Specifications

14 parameters
Product StatusObsolete
FET Type2 N-Channel (Half Bridge)
FET FeatureStandard
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25°C22A, 93A
Rds On (Max) @ Id, Vgs3.2mOhm @ 22A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs128nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds11130pF @ 30V
Power - Max2.2W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerWDFN
Supplier Device Package8-Power 5x6
