FDMD8540L

In Stock: 9,727

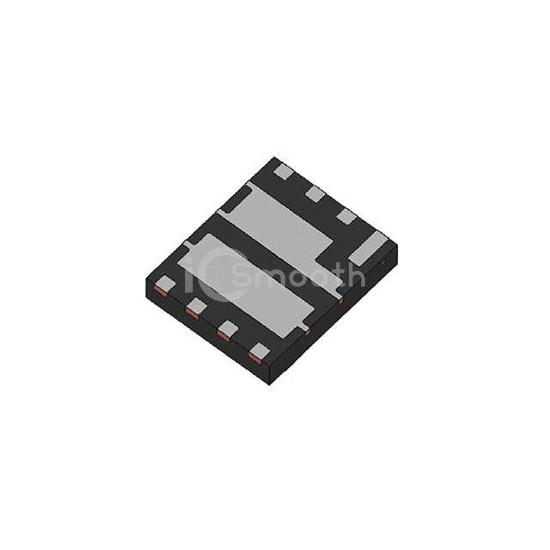

FDMD8540L - onsemi - Transistors - FETs, MOSFETs - Arrays
REF: FDMD8540L onsemi
FDMD8540L

onsemi

MOSFET 2N-CH 40V 8POWER 5X6

FDMD8540L is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 40V 8POWER 5X6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 2.3W.

Datasheet Request a Quote

In Stock: 9,727

Specifications

14 parameters
Product StatusObsolete
FET Type2 N-Channel (Half Bridge)
FET FeatureStandard
Drain to Source Voltage (Vdss)40V
Current - Continuous Drain (Id) @ 25°C33A, 156A
Rds On (Max) @ Id, Vgs1.5mOhm @ 33A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs113nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds7940pF @ 20V
Power - Max2.3W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerWDFN
Supplier Device Package8-Power 5x6
