FDMD8530

In Stock: 6,832

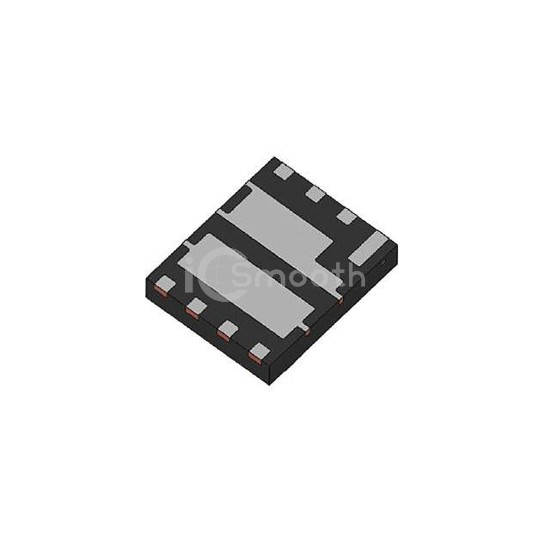

FDMD8530 - onsemi - Transistors - FETs, MOSFETs - Arrays
REF: FDMD8530 onsemi
FDMD8530

onsemi

MOSFET 2N-CH 30V 35A

FDMD8530 is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 30V 35A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 2.2W.

Datasheet Request a Quote

In Stock: 6,832

Specifications

14 parameters
Product StatusObsolete
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C35A
Rds On (Max) @ Id, Vgs1.25mOhm @ 35A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs149nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds10395pF @ 15V
Power - Max2.2W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerWDFN
Supplier Device PackagePower56
