FDMD8260L

In Stock: 2,029

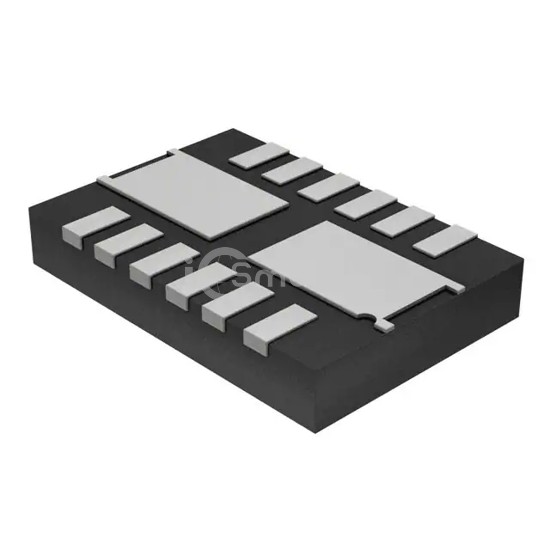

FDMD8260L - onsemi - Transistors - FETs, MOSFETs - Arrays
REF: FDMD8260L onsemi
FDMD8260L

onsemi

MOSFET 2N-CH 60V 15A 12POWER

FDMD8260L is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 60V 15A 12POWER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 12-PowerWDFN, power - max 1W.

Datasheet Request a Quote

In Stock: 2,029

Specifications

14 parameters
Product StatusLast Time Buy
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25°C15A
Rds On (Max) @ Id, Vgs5.8mOhm @ 15A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs68nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds5245pF @ 30V
Power - Max1W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case12-PowerWDFN
Supplier Device Package12-Power3.3x5
