FDMC7200S

In Stock: 7,266

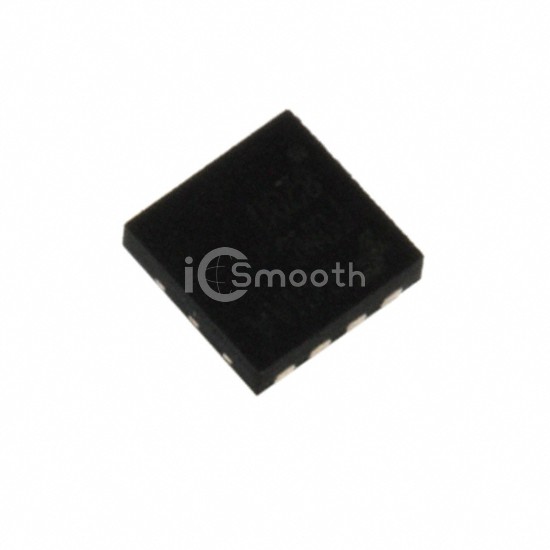

FDMC7200S - onsemi - Transistors - FETs, MOSFETs - Arrays
REF: FDMC7200S onsemi
FDMC7200S

onsemi

MOSFET 2N-CH 30V 7A/13A 8POWER33

FDMC7200S is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 30V 7A/13A 8POWER33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 700mW, 1W.

Datasheet Request a Quote

In Stock: 7,266

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C7A, 13A
Rds On (Max) @ Id, Vgs22mOhm @ 6A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds660pF @ 15V
Power - Max700mW, 1W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerWDFN
Supplier Device Package8-Power33 (3x3)
