FDMB3900AN

In Stock: 6,844

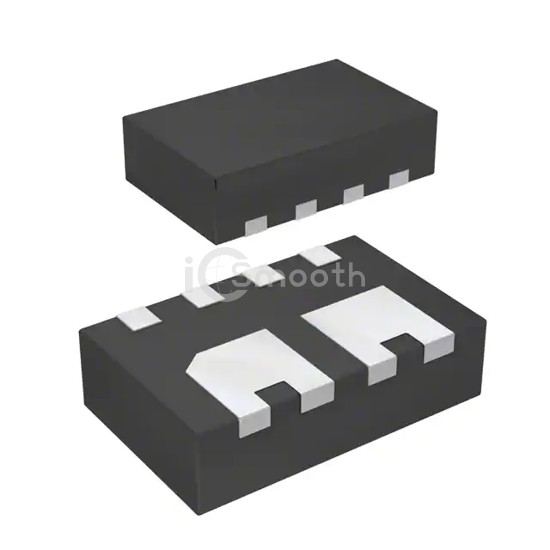

FDMB3900AN - onsemi - Transistors - FETs, MOSFETs - Arrays
REF: FDMB3900AN onsemi
FDMB3900AN

onsemi

MOSFET 2N-CH 25V 7A 8MLP MICRO

FDMB3900AN is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 25V 7A 8MLP MICRO. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 800mW.

Datasheet Request a Quote

In Stock: 6,844

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25°C7A
Rds On (Max) @ Id, Vgs23mOhm @ 7A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs17nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds890pF @ 13V
Power - Max800mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerWDFN
Supplier Device Package8-MLP, MicroFET (3x1.9)
