Name: FDMB2308PZ
Brand: onsemi
SKU: FDMB2308PZ
Price: 2.20 USD
Availability: InStock

REF: FDMB2308PZ onsemi

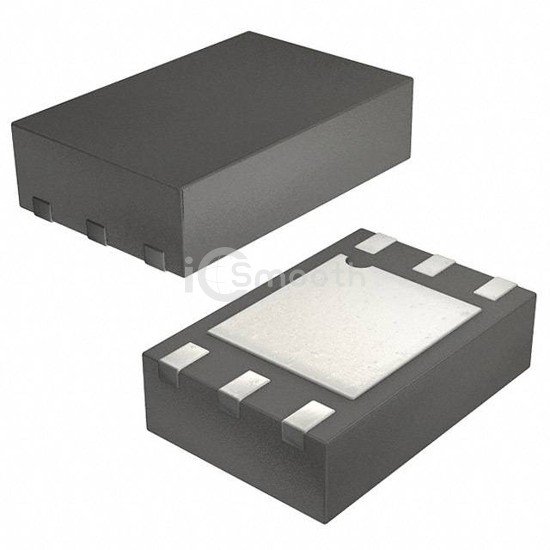

FDMB2308PZ

MOSFET 2P-CH MLP2X3

FDMB2308PZ is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2P-CH MLP2X3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad, power - max 800mW.

Datasheet Request a Quote

In Stock: 9,399

Specifications

14 parameters

Product Status	Active
FET Type	2 P-Channel (Dual) Common Drain
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	-
Current - Continuous Drain (Id) @ 25°C	-
Rds On (Max) @ Id, Vgs	36mOhm @ 5.7A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	30nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	3030pF @ 10V
Power - Max	800mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-WDFN Exposed Pad
Supplier Device Package	6-MLP (2x3)
