Name: FDMA3027PZ
Brand: onsemi
SKU: FDMA3027PZ
Availability: InStock

REF: FDMA3027PZ onsemi

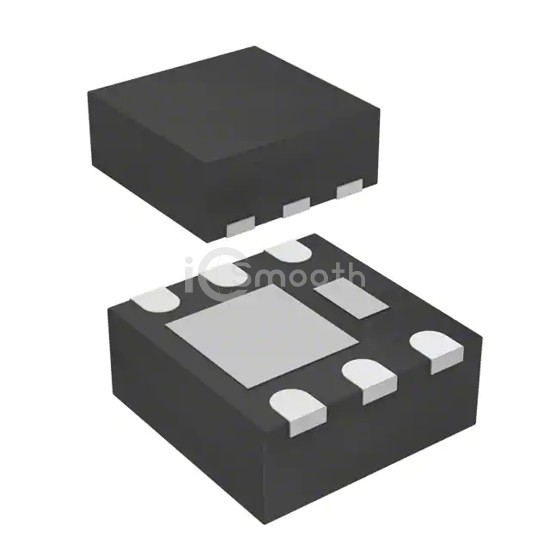

FDMA3027PZ

MOSFET 2P-CH 30V 3.3A 6MICROFET

FDMA3027PZ is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2P-CH 30V 3.3A 6MICROFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-VDFN Exposed Pad, power - max 700mW.

Datasheet Request a Quote

In Stock: 3,437

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 P-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	3.3A
Rds On (Max) @ Id, Vgs	87mOhm @ 3.3A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	435pF @ 15V
Power - Max	700mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-VDFN Exposed Pad
Supplier Device Package	6-MicroFET (2x2)
