Name: FDMA1028NZ-F021
Brand: onsemi
SKU: FDMA1028NZ-F021
Price: 0.29 USD
Availability: InStock

REF: FDMA1028NZ-F021 onsemi

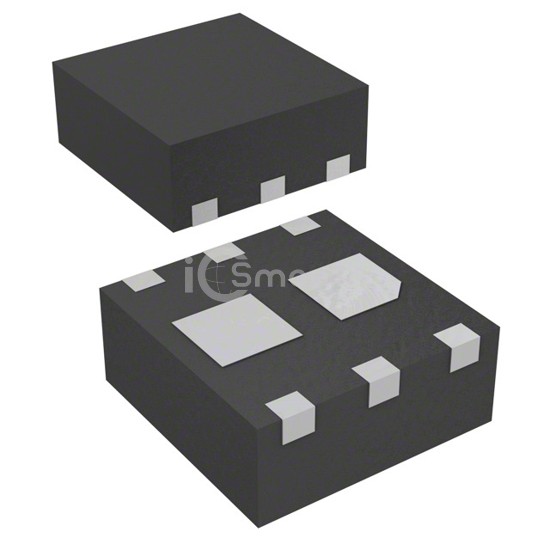

FDMA1028NZ-F021

MOSFET 2N-CH 20V 3.7A MICROFET

FDMA1028NZ-F021 is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 20V 3.7A MICROFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-VDFN Exposed Pad, power - max 700mW.

Datasheet Request a Quote

In Stock: 9,452

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	3.7A
Rds On (Max) @ Id, Vgs	68mOhm @ 3.7A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	340pF @ 10V
Power - Max	700mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-VDFN Exposed Pad
Supplier Device Package	6-MicroFET (2x2)
