Name: FDMA1023PZ-F106
Brand: onsemi
SKU: FDMA1023PZ-F106
Availability: InStock

REF: FDMA1023PZ-F106 onsemi

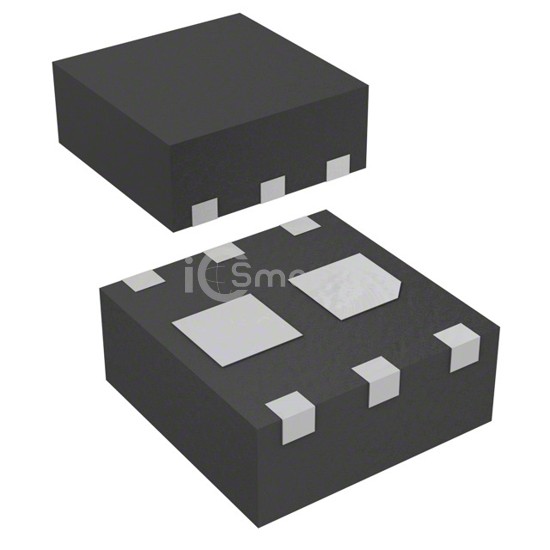

FDMA1023PZ-F106

DUAL P-CH ERTRENCH FETS

FDMA1023PZ-F106 is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. DUAL P-CH ERTRENCH FETS. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-VDFN Exposed Pad, power - max 700mW (Ta).

Datasheet Request a Quote

In Stock: 3,782

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 P-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	3.7A (Ta)
Rds On (Max) @ Id, Vgs	72mOhm @ 3.7A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	12nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	655pF @ 10V
Power - Max	700mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-VDFN Exposed Pad
Supplier Device Package	6-MicroFET (2x2)
